MOUNTED MOVEMENT

5-115. Mounted movement is similar to dismounted movement. Depending on the vehicle type, a platoon may have a squad in one to four vehicles. Units with more than four vehicles should consider splitting the vehicles into two or more sections and control these sections much the same way squads control their teams.

5-116. Units augmented with four or more vehicles can use any of the seven formations. They use them within the context of the three movement techniques (See chapter 2, section IV for more information.) and should be prepared to execute immediate action drills when transitioning to maneuver. When the mounted unit stops, they use the coil and herringbone formations to ensure security.

5-117. In mounted successive bounds, vehicles keep their relative positions in the column. The first and second vehicles operate as a section in moving from one observation point to another. The second vehicle is placed in a concealed position, occupants dismounting if necessary, to cover movement of the first vehicle to an observation point. On reaching this point, occupants of the first vehicle observe and reconnoiter, dismounting if necessary. When the area is determined to be clear, the second vehicle is signaled forward to join the first vehicle.

5-118. The commander of the first vehicle observes the terrain to the front for signs of enemy forces and selects the next stopping point. The first vehicle then moves out and the process is repeated. Movement distance of the lead vehicle does not exceed the limit of observation or the range of direct fire support from the second vehicle. The lead vehicle and personnel are replaced frequently to ensure constant alertness. The other vehicles in the column move by bounds from one concealed position to another. Each vehicle maintains visual contact with the vehicle ahead but avoids closing up. (See figure 5-17.) However, as a rule, vehicles always work in pairs and should never be placed in a situation where one vehicle is not able to be supported by the second.

5-119. In mounted alternate bounds, all except the first two vehicles keep their relative places in the column. The first two vehicles alternate as lead vehicles on each bound. Each covers the bound of the other. This method provides a more rapid advance than movement by successive bounds, but is less secure. Security is obtained by the vehicle commander who assigns each Soldier a direction of observation (to the front, flank, or rear). This provides each vehicle with some security against surprise fire from every direction, and provides visual contact with vehicles to the front and rear.

Watch the following video to learn more about Lead vehicle moving by bounds

VIDEO

MINE RESISTANT AMBUSH PROTECTED VEHICLE MISSION AND PURPOSE

5-120. The mine resistant ambush protected (MRAP) vehicle’s mission role is similar to the Stryker in many respects. MRAP provides small units with protected mobility and mounted firepower. Squads and platoons use MRAP vehicles to conduct both mounted and dismounted missions.

5-121. MRAP is designed for distinct purpose of increasing the protection of Soldiers against small-arms fire and detonation of mines or IEDs employed singularly or in combination. With increased protection, an MRAP vehicle can increase its standoff to potential threats or move through potential danger areas when METT-TC dictates the increased risk.

MINE RESISTANT AMBUSH PROTECTED CAPABILITIES AND LIMITATIONS

5-122. Units employ MRAP vehicles by understanding the vehicle’s capabilities and limitations while integrating protection with training to standard, detailed planning, smart tactics, and well-rehearsed drills, MRAP vehicles operate under the full spectrum of weather and terrain conditions, to include limited off-road operation across firm soil and obstacles such as debris.

5-123. Exiting the vehicle in response to an ambush and loading or unloading equipment and casualties are difficult due to the steps and back hatch on some MRAP variants. Units must train and rehearse individuals and teams to streamline the process for mounting and dismounting operations under various conditions, especially in an emergency.

5-124. The field of view from the armored windows is limited for Soldiers, which results in blind spots and overall poor visibility.

WARNING
Operating on single-lane or steeply crowned rural roads with no shoulders, roads with soft shoulders or washouts around culverts, especially road bordering water (such as canal, irrigation ditch, or pond) requires extreme caution. The majority of MRAP vehicle rollovers are due to road, shoulder or bridge approaches giving way under the MRAP vehicle’s weight and high center of gravity.

5-125. Trafficability studies/products must be available to the leaders and Soldiers operating MRAP vehicles. They can factor area of operation-specific trafficability and terrain limitations into their risk management and combat planning processes. (Refer to ADRP 3-37 for more information.)

5-126. Figure 5-18 shows possible mounted movement with MRAP vehicles both file/column or staggered. The leader based on information and intelligence, commander’s intent and METT-TC makes the determination which mounted maneuvering technique will be used.

Note: Refer to TC 7-31 for more information on the MRAP family of vehicles.

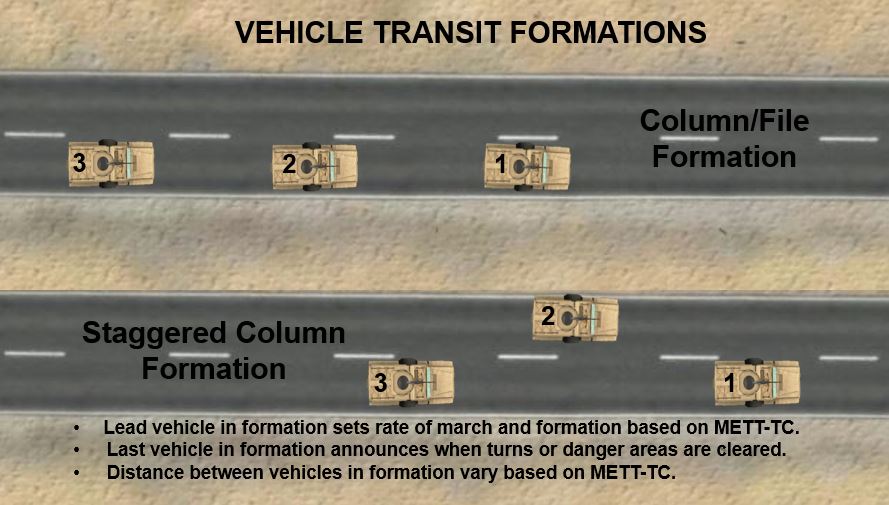

MRAP vehicle file/column or staggered formation

Figure 5-18. MRAP vehicle file/column or staggered formation
